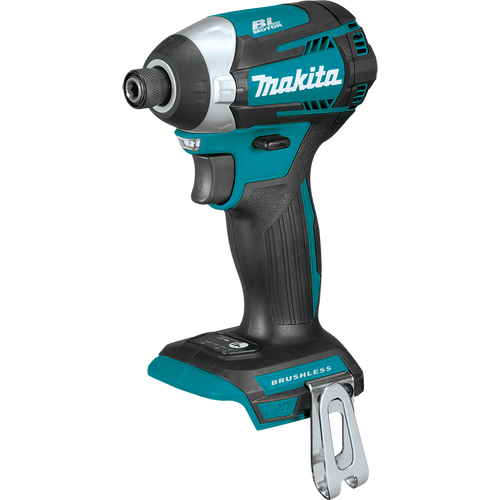

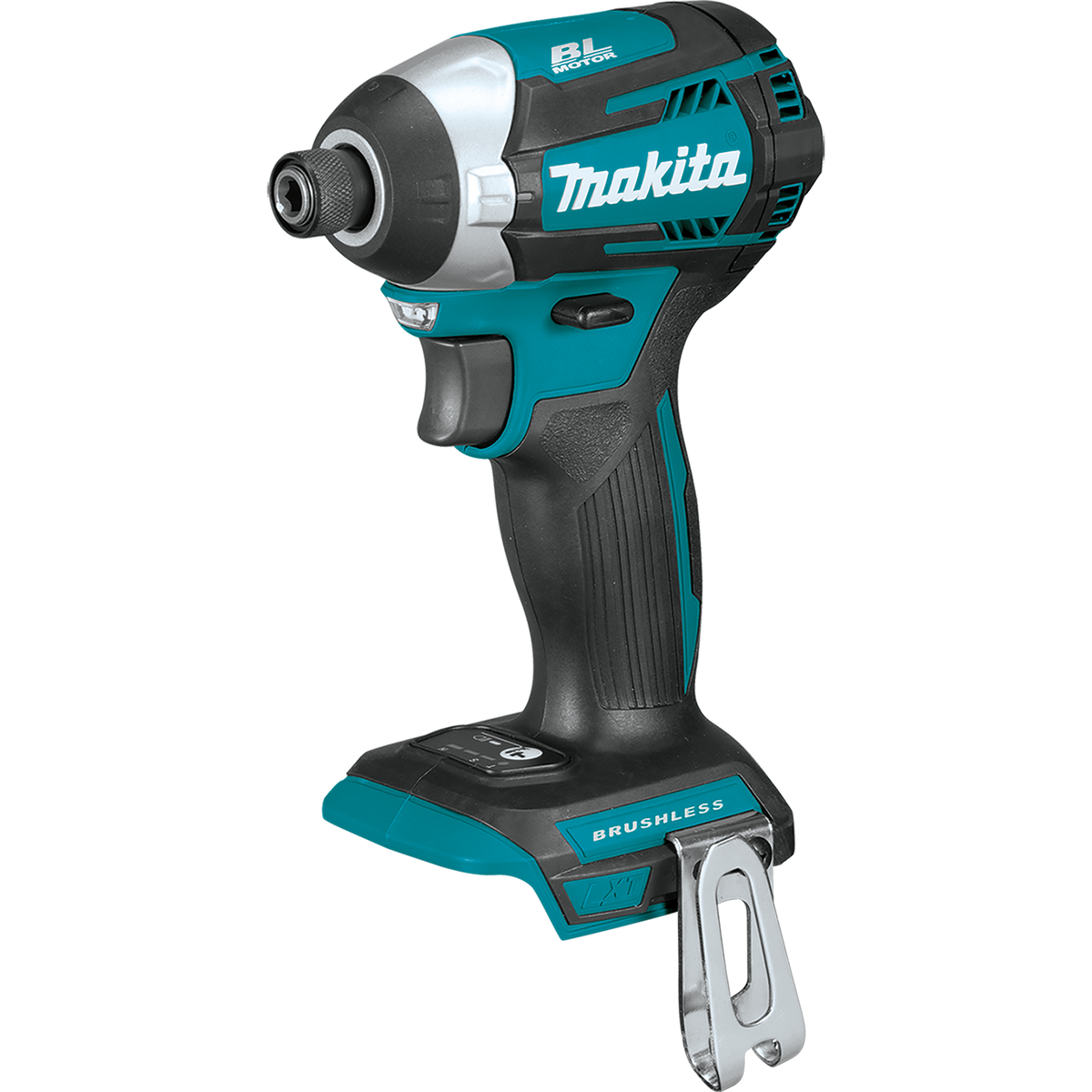

Makita 18V LXT® Lithium‑Ion Brushless Cordless Quick‑Shift Mode™ 3‑Speed Impact Driver, Tool Only

Makita

Options

TECHNOLOGY : Quick-Shift Mode™ uses the motor’s electronic controls to find the best balance of speed and torque
POWER : BL™ Brushless Motor delivers 3,600 Max RPM and 1,550 in.lbs. of Max Torque
COMPACT : Compact and ergonomic design at only 4-5/8" long
COMFORT : Rubberized soft grip provides increased comfort on the job
INCLUDES : Tool only (battery and charger not included)

ABOUT

The Makita 18V LXT® Lithium-Ion Brushless Cordless Quick-Shift Mode™ 3-Speed Impact Driver (model XDT14Z, tool only, batteries and charger sold separately) is a best-in-class fastening solution for users who want more torque, longer run-time, and precision fastening features. The XDT14Z delivers all of the above in a compact size with a superior power-to-weight ratio.

The XDT14Z combines a full 1,550 in.lbs. of fastening torque with category-leading precision features. Quick-Shift Mode™ uses the brushless motor’s electronic controls to find the best balance of speed and torque for each application for more efficient fastening. Another precision feature is Tightening Mode (T-mode), which downshifts and reduces rotation and impact speed prior to driving the screw into place, and is engineered to minimize screw thread stripping, screw breakage and damage to work. These precision features, combined with 3-speed power settings, give users more control for a wide range of fastening tasks – from cabinet screws and deck screws to lag bolts, and much more. It is only 4-5/8" long and ideal for work in tight spaces.

It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.

FEATURES

Quick-Shift Mode™ uses the brushless motor’s electronic controls to find the best balance of speed and torque for each application for more efficient fastening
Tightening Mode (T-mode) for faster tightening of self-drilling screws; helps prevent damage to the screw or workpiece
3-speed power selection switch (0-1,100 / 0-2,100 / 0-3,600 RPM & 0-1,100 / 0-2,600 / 0-3,800 IPM) provides precise fastening control for a wide range of applications
BL™ Brushless Motor delivers 3,600 Max RPM and 1,550 in.lbs. of Max Torque
Efficient BL™ Brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
The BL™ Brushless Motor eliminates carbon brushes, enabling the BL™ Motor to run cooler and more efficiently for longer life
Features Extreme Protection Technology (XPT™) which is engineered to provide increased dust and water resistance in harsh job site conditions
The electronically-controlled BL™ Brushless Motor efficiently uses energy to match torque and RPM to the changing demands of the application
Compact and ergonomic design at only 4-5/8" long
Weighs only 3.3 lbs. with battery (battery not included) for reduced operator fatigue
All metal gear housing for increased job site durability
Convenient one-touch 1/4" hex chuck for quick bit changes
Dual L.E.D. lights with an independent on/off switch illuminate the work area
Rubberized soft grip provides increased comfort on the job
Makita's proprietary hammer and anvil impact mechanism is manufactured using the best raw materials with the highest quality steel and unique heat hardening process for maximum fastening and driving power
Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery not included)
Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery not included)
3-year limited warranty
Only use genuine Makita batteries and chargers

TECHNOLOGY

Tool users who unplug the cord with Makita 18V LXT® experience new levels of convenience, efficiency and productivity. Makita created the 18V Lithium-Ion cordless tool category in 2005, and today it is the world’s largest 18V cordless tool line-up. Makita’s leading technology gives tool users unmatched performance and breadth of line, with innovation in motor and battery technology that is obliterating industry standards – and leaving old thinking behind. With high amp-hour batteries, efficient brushed and brushless motors, and 36V (18V X2) LXT® technology, Makita 18V LXT® tools not only meet corded demands, they can exceed the performance of corded, all while remaining in a single cordless platform powered by the industry's fastest-charging 18V lithium-ion batteries.

Makita cordless tools are engineered for industrial applications, and for added protection during the most demanding jobs Makita created STAR Protection Computer Controls™. STAR is communications technology that monitors conditions during use, allowing the tool and battery to exchange data to protect against overloading, overdischarging and overheating. If STAR detects conditions that threaten to overload, overdischarge or overheat the tool or battery, the tool will automatically stop. At that time the user can either restart the tool, change or charge the battery, and put the tool back to work. When you slide a Makita 18V LXT® battery with the STAR symbol onto a Makita tool that has either the STAR symbol or a yellow terminal, you are benefitting from STAR Protection Computer Controls™.
When the job takes your Makita tool into harsh conditions, Makita Extreme Protection Technology (XPT™) provides added protection. XPT™ is a series of integrated seals engineered to channel away dust and water for increased durability. Wherever the job takes you, Makita tools equipped with XPT™ are engineered for increased durability and longer tool life.
Precision fastening applications often require the user to stop or slow down the impact driver just prior to driving the screw into place to ensure there is no damage to the fastener or work piece. Quick-Shift Mode™ is the solution for precision fastening. Quick-Shift Mode™ is an automatic electronic controller that downshifts and reduces rotation and impact speed prior to driving the screw into place. It is engineered to minimize screw thread stripping, screw breakage and damage to work. Makita impact drivers equipped with Quick-Shift Mode™ are ideal for precision fastening applications, from cabinetry to solar panel installation, and more.

SPECS

Hex Shank : 1/4"
No Load Speed (var. 3 spd.) : 0 - 1,100 / 0 - 2,100 / 0 - 3,600 RPM
Impacts Per Minute (var. 3 spd.) : 0 - 1,100 / 0 - 2,600 / 0 - 3,800 IPM
Maximum Torque (in.lbs./N•m) : 1,550 in.lbs./175N•m
Battery : 18V LXT® Lithium-Ion
Overall Length : 4-5/8"
Net Weight (with battery) : 3.3 lbs.

Speed power selection : 3
Power Type : Cordless
Form Factor (LXT) : 18V LXT®
Motor Type : Brushless
Shipping Weight : 2.48 lbs.
UPC Code : 088381-824231
